제품소개

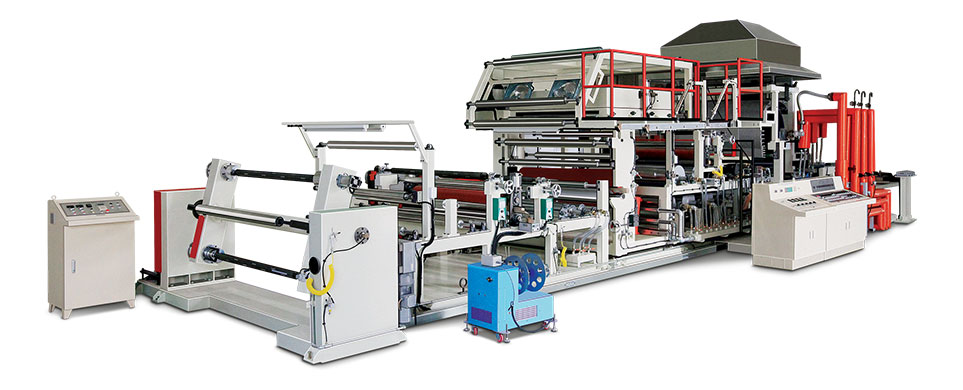

EMBOSSING Machine
3PY-Lamination Type

데코시트 엠보싱 작업에 특화되어있는 기계로 다양한 유형의 화학 섬유 시트작업이 가능하며 특히 히타의 발열양이 높아 특화된 제품생산이 가능하며 쉬운 유지보수와 높은 생산성의 기계입니다.

The Composition of a Machine
Raw Material Width Max. 1,500mm
Unwinder Unit (3set) 1st, 2nd, 3rd
Main Drum Roll Dia 1,200mm Dia
Main Drum Roll Heat Source Roller (Heating Medium Oil) / Surface(Quartz Tube Heater Type)
Embo Roll Dia 150 ~ 300mm Dia
Embo Roll Press Hydraulic Cylinder Type
CoOlling Roll Water Cooling
Rewinder Unit (1set) Turret Type (2-Shaff)
Rewinder Motor AC Vector Motor or V.S Motor
Machine Speed Max. 50m/mm

권취기

REWINDING Machine
Inspection Board Lamp Type
The Composition of a Machine
Raw Material Width Max. 1,500mm
Unwinder Dia Max. 800mm
Trimming System Knife Type
Winding Core Paper Type Core (I.D 76mm)
Rewinding Dia Max. 800mm
Machine Speed Max. 150m/m
